1B6-051 Goodyear Rubber Air Spring Single Convoluted Pneumatic Air Rubber Bellows
Product Introduction
The rubber air spring (referred to as rubber airbag) is a sealed container filled with compressed gas (air pressure is 0.5-1Mpa), and uses the compressibility of the gas to achieve its spring action. The stiffness of this air spring is variable. When the load acting on the spring hill increases, the quantitative gas in the container is compressed, the air pressure increases, and the stiffness of the spring increases. Conversely, when the load decreases, the air pressure in the spring decreases and the stiffness decreases. In this way, the rubber airbag has ideal elastic properties. There are two types of rubber air springs: capsule type and membrane type. The capsule type rubber air suspension is composed of a rubber airbag with a cord and compressed air enclosed therein. The inner layer of the capsule type is made of airtight rubber, while the outer layer is made of oil-resistant rubber. The upper and lower covers of the airbag seal the airbag.
Product Specifications and Technical Parameters
Diameter of the Top Cover Plate: 115 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 44.5 mm
Diameter of the Bottom Cover Plate: 115 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate: 44.5 mm
Screw (Nut) Thread Count for the Top Cover Plate: 2×3/8-16UNC
Screw (Nut) Thread Count for the Bottom Cover Plate: 2×3/8-16UNC
Air Inlet: 1/4NPTF
Max Diameter of the Rubber Bellow: 165 mm
Maximum Height: 115 mm
Minimum Height: 50 mm
Vibration isolation - dynamic characteristics values
| Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force (Load) [kN] | 2.9 | 3.8 | 4.8 | 5.8 | 6.8 | 7.7 | 1.5 |
| Spring Rate [N/cm] | 855 | 1110 | 1340 | 1590 | 1840 | 2050 |
| Natural Frequency [Hz] | 2.8 | 2.7 | 2.7 | 2.6 | 2.6 | 2.6 |
Pneumatic application - static characteristic values
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[l] |
| Height H [mm] | 120 | 2.6 | 3.5 | 4.4 | 5.3 | 6.2 | 7.2 | 1.54 |
| 110 | 3.1 | 4.2 | 5.2 | 6.3 | 7.4 | 8.5 | 1.46 |
| 100 | 3.5 | 4.7 | 5.9 | 7.2 | 8.3 | 9.6 | 1.38 |
| 90 | 3.9 | 5.2 | 6.5 | 7.9 | 9.2 | 10.5 | 1.27 |
| 80 | 4.2 | 5.6 | 7.0 | 8.5 | 9.8 | 11.3 | 1.18 |
| 70 | 4.5 | 5.8 | 7.4 | 9.0 | 10.4 | 12.0 | 1.07 |
OEM Part Numbers
Goodyear Part Number: 1B6-051
Goodyear Part Number: 1B6051
Goodyear Part Number: 1B6 051
Firestone Part Number: W01-358-7731
Firestone Part Number: W013587731
Firestone Part Number: W01 358 7731
Firestone Part Number: W01-358-7001
Firestone Part Number: W013587001
Firestone Part Number: W01 358 7001
Goodyear Bellows Number: 578-92-0-075
Goodyear Bellows Number: 578920075
Goodyear Bellows Number: 578 92 0 075

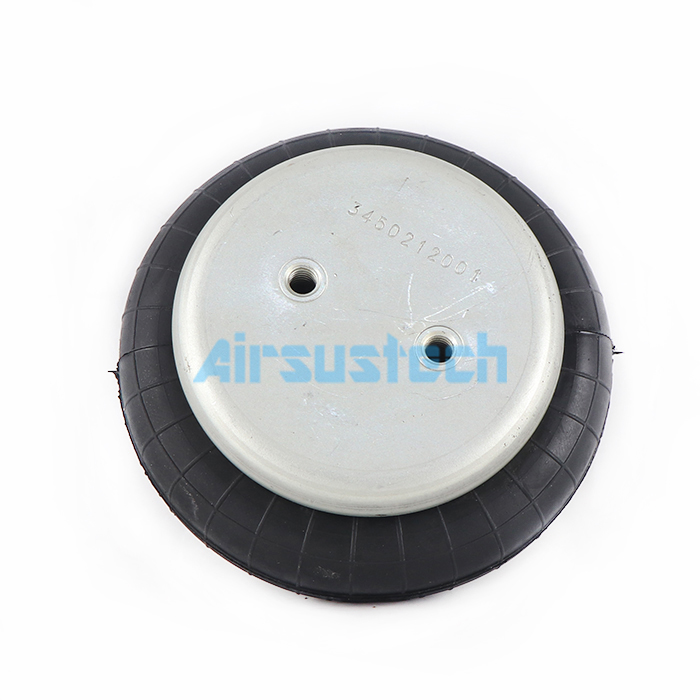

The Related Pictures
